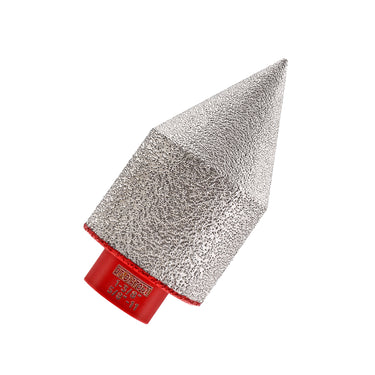

DT-DIATOOL Diamond Vacuum Brazed Chamfering Milling Finger Bits for Ceramic Porcelain Tile Granite Dia 20/25/35/50mm

$24.99
Size: 1-3/8''(35mm)
Thread: 5/8-11(USA)
Quantity: 1pc

Product Name: Vacuum Brazed Diamond Beveling Chamfer Milling Finger Bit for Porcelain Ceramic Tiles Marble


Specification:

         Diameter 20mm;Total length 60mm;5/8"-11 or M14 thread;

         ·Chamfering Part: Length 20mm, Grit#80;

         ·Milling Part: Length 30mm, Grit#60



         Diameter 25mm;Total length 65mm;5/8"-11 or M14 thread;

        ·Chamfering Part: Length 25mm, Grit#80;

        ·Milling Part: Length 30mm, Grit#60



        Diameter 35mm;  Total length 73.5mm;  5/8"-11 or M14 thread

        ·Chamfering Part: Length 33.5mm, Grit#80

        ·Milling Part: Length 30mm, Grit#60



        Diameter 50mm;  Total length 82mm;  5/8"-11 or M14 thread

        ·Chamfering Part: Length 42mm, Grit#80

        ·Milling Part: Length 30mm, Grit#60


Quantity: 1pc,2pcs


Application:

1. Used for processing ceramic tiles, porcelain tiles, marble, granite and other materials;
2. Enlarge, chamfer, grind and shape the formed holes, and repair the hole contour and finish;

3. Dry and wet dual-use, suitable for angle grinder, easy to operate;


Features:

1. Multiple functions, such as reaming, chamfering, grinding, polishing, etc;

2. Vacuum brazing processing technology, combined with high-quality steel, is sharp, sturdy and durable, extending the service life;


NOTE :

1. The recommended speed is 6000RPM, and the maximum speed is 11000RPM;
2. Do not use impact or hammer mode when connecting to a device with impact and hammer mode.
