DT-DIATOOL

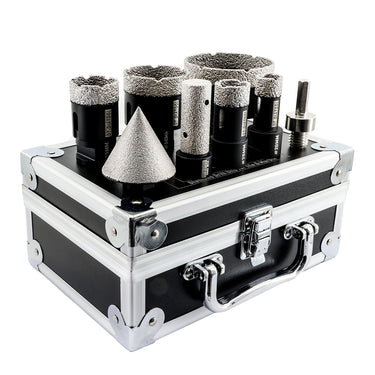

DT-DIATOOL Diamond Drill Core Bits Sets 8pcs with box M14 Vacuum Brazed Dia 20/25/35/50/75mm+50mm Chamfer Bit+20mm milling bit +Hex adapter for Granite Porcelain Tile

$165.25 $165.25
Size: 20/25/35/50/75mm+50mm Chamfer Bit+20mm milling bit +Hex adapter
Quantity: 8pcs

Product Name: Vacuum Brazed Diamond Drill Core Bits Sets Hole Saw Mixed size

Quantity: 1set/8pcs boxed drill bits

Contains：5pcs(20/25/35/50/75mm) drill bits,1pc 50mm Chamfer bit,1pc 20mm milling bit,1pc hex shank adapter,totally 8pcs/box;

Specification:

1, Core bits: Dia 20/25/35/50/75mm; M14 Thread; total length 60mm; diamond height 15mm;

2, Chamfer Bit: Dia 50mm;M14 Thread; total length 55mm;Working length 45mm

3, Milling Bit: Dia 20mm;M14 Thread; total length 65mm;Working length 50mm

4,The Hex adapter : M14 male thread,3/8" hexagon shank, shank length 28mm, total length 53mm；

Feature:

  • Dry or wet drilling

  • Having wide application: for porcelain tile granite marble stone masonry brick

  • All bits are produced in vacuum brazed technology

  • Vacuum brazed technology provides longer working life

  • High quality diamond grain provide fast and smooth drilling
